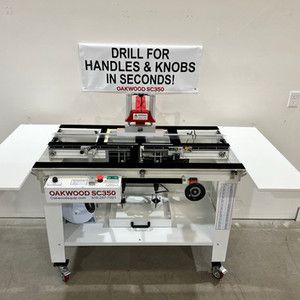

Oakwood  SC350:  Precision and Efficiency for Cabinet Makers

Save time and eliminate errors with the Oakwood SC350 Self-Centering Door & Drawer Front Drilling Machine—your go-to solution for perfectly aligned knob and handle holes. Designed with woodworking professionals in mind, this innovative machine delivers consistent results while simplifying your workflow. Whether you're handling small or large cabinet fronts, the SC350 guarantees centered placement in seconds, making it an indispensable tool for closet and cabinet shops.

Price: $10,795

Standard Features at a Glance

• Adjustable part size: 4.5” x 8” to 14” x 36”
• Maximum drilling thickness: 1.5”
• Center-to-center drill spacing: 65mm to 350mm
• Adjustable height: 35” to 39”
• On-board air tank for consistent performance


Unmatched Precision

The SC350's self-centering fence system ensures flawless alignment every time, accommodating parts as small as 4.5" x 8" to as large as 14" x 36". With adjustable drill spacing and four position depth stops, it handles any job with accuracy, reducing waste and costly rework.

Effortless Operation

Forget tedious tape measuring and jig adjustments! The SC350 requires no additional tools to set up and adjusts quickly, allowing you to focus on production. Its air-operated drills powered by a standard air hose ensure smooth, efficient operation with minimal effort.

Ultimate Flexibility

Designed to adapt to your shop’s needs, the SC350 features folding steel side tables that create a space-saving U-shaped work cell. Adjustable table height and 4” locking caster wheels provide mobility and convenience, making it easy to move and position wherever you need it.

Built for Durability and Safety

Equipped with a sturdy frame, replaceable drill stops, and a movable button console, the SC350 is built to withstand the demands of busy woodshops. Two-handed operation adds an extra layer of safety while the automatic oiler keeps the air drills in peak condition.

Specifications

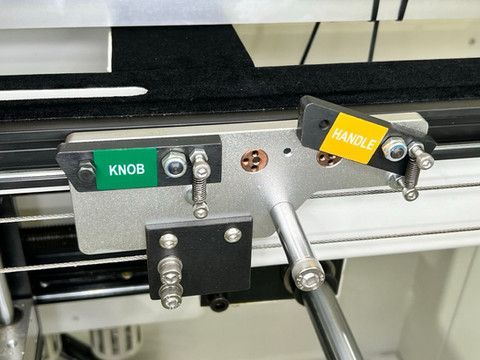

• Self-Centering fence stop system
• Part Size 4.5” x 8”w to 14” x 36”w / 115mm x 204mm to 355mm x 914mm
• Max drilling thickness 1.5”/39mm
• Minimum drawer box inside clearance 8”/210mm when drilling boxes
• Center to Center drill spacing 65mm to 350mm/ 2.5” to 13.75”
• Back fence to drill center 1” /25mm minimum
• Drill spacing adjustable with front mounted wheel with metric digital indicator

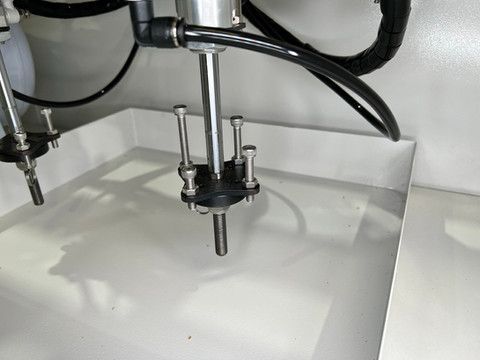

• 2 air operated drills, each drill operated by its own activation button
• Automatic oiler for air drills
• 4 position drill depth stops
• Movable button console for clearance on larger parts
• 2 handed operation for safety
• 5mm brad point bits standard

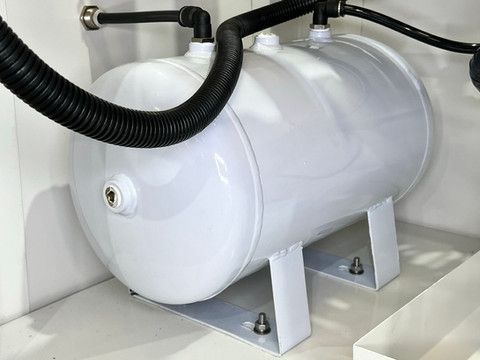

• On board air tank with standard compressed air connection
• Removable/replaceable hold down drill stop

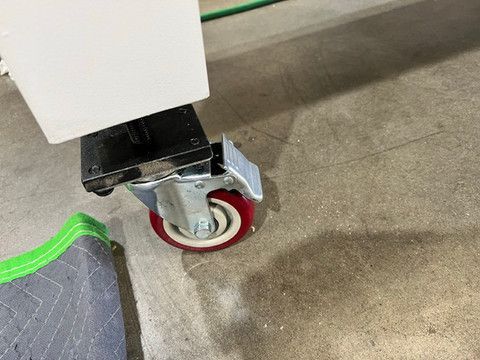

• 4” wheels, 2 with lock
• Folding steel side tables
• Adjustable height approximate 35”-39”
